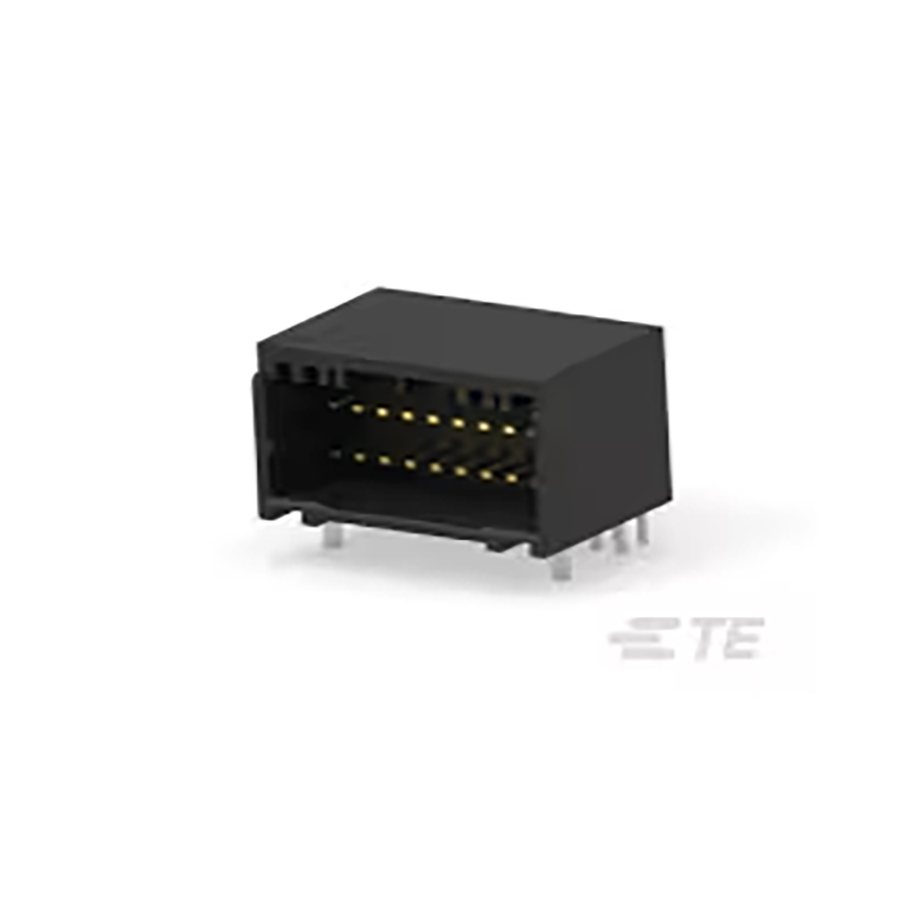

1-1827873-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1827873-0
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 22.6 mm |
| Width | 15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 125 V |
| Height | 11.8 mm |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 15 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 3.1 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 3.29946 mm |
| Housing Material | Polyester |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 125 V |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.1 mm |
| Contact Gender | Male |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | Without |
| Mating Alignment | With |
| Termination Post Length | 3.1 mm |
Stock: 491
Distributors
pcbx
pcbxUnit Price$5.73230
Ext.Price$5.73230
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.73230 | $5.73230 |
| 10 | $5.35199 | $53.51990 |
| 25 | $4.99691 | $124.92275 |
| 50 | $4.66539 | $233.26950 |
| 100 | $4.35587 | $435.58700 |
| 300 | $3.77217 | $1131.65100 |
| 500 | $3.26668 | $1633.34000 |
| 1000 | $2.82896 | $2828.96000 |
